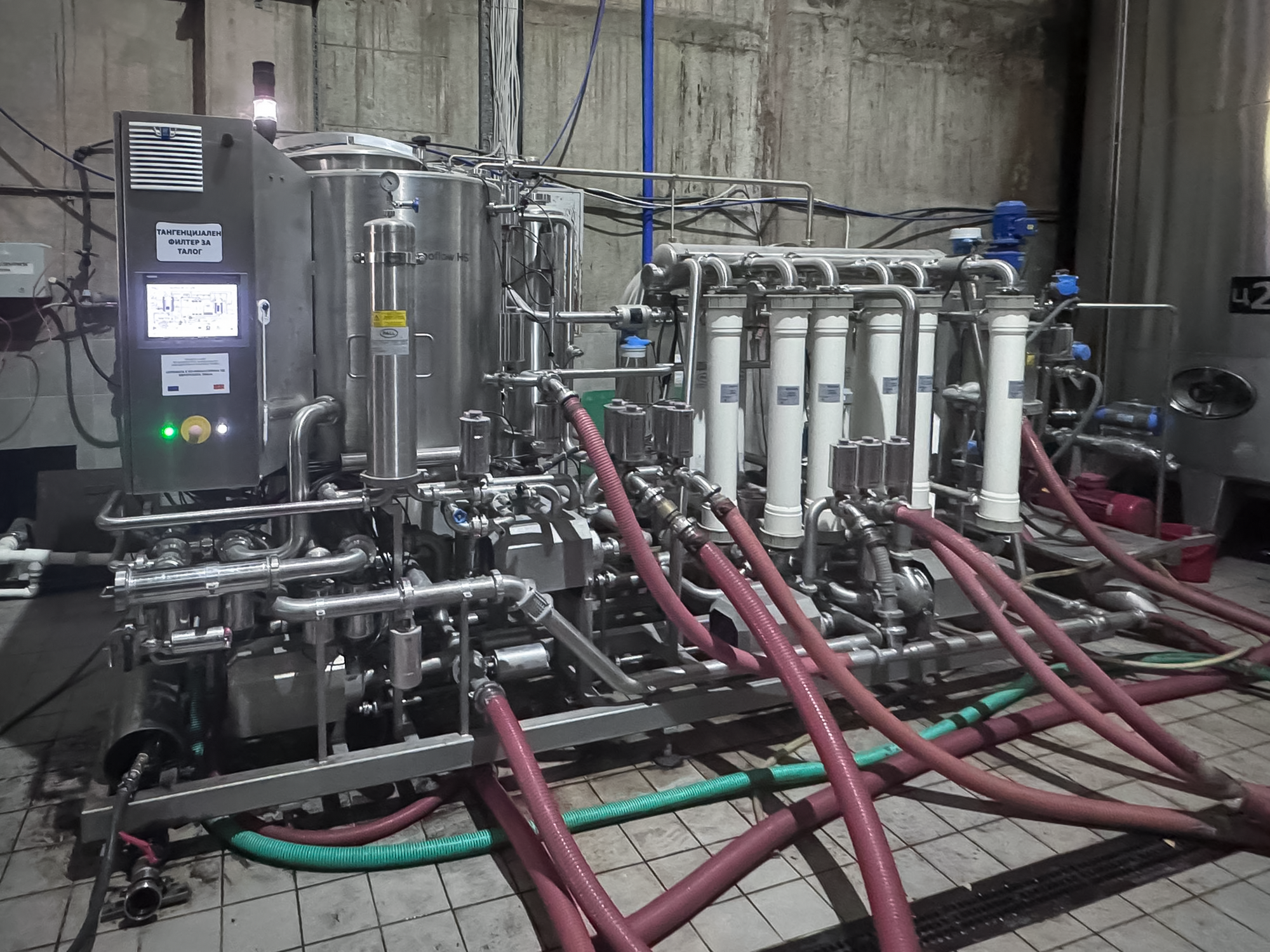

Pall Oenoflow HS Filtration System for Rigo Winery
Pall Oenoflow HS12-A Year: 2019
General Characteristics
Manufacturer: Pall Corporation
Client: Rigo Impeks Winery, Gevgelija
Application: Filtration of lees (wine sediment: must deposits, fermentation and clarification residues), as well as apple and grape pulp/juices. It can also be used for wine clarification after fermentation.
Technology: Crossflow filtration with hollow fiber membranes made of PVDF (polyvinylidene fluoride) material.
Advantages / Specific Features
- No filter aids required (e.g., diatomaceous earth / DE) – resulting in less labor, less waste, and a more environmentally friendly operation.
- Closed system – minimizes oxygen exposure, helping to preserve the wine’s color, aroma, acidity, and flavor.
- Low hold-up volume (minimal residual volume in the system) – allows processing of small quantities of lees with reduced product losses.
- Large fiber diameter / wide pores – enables filtration even at high concentrations of suspended solids, with solids content up to ~80% at recovery.

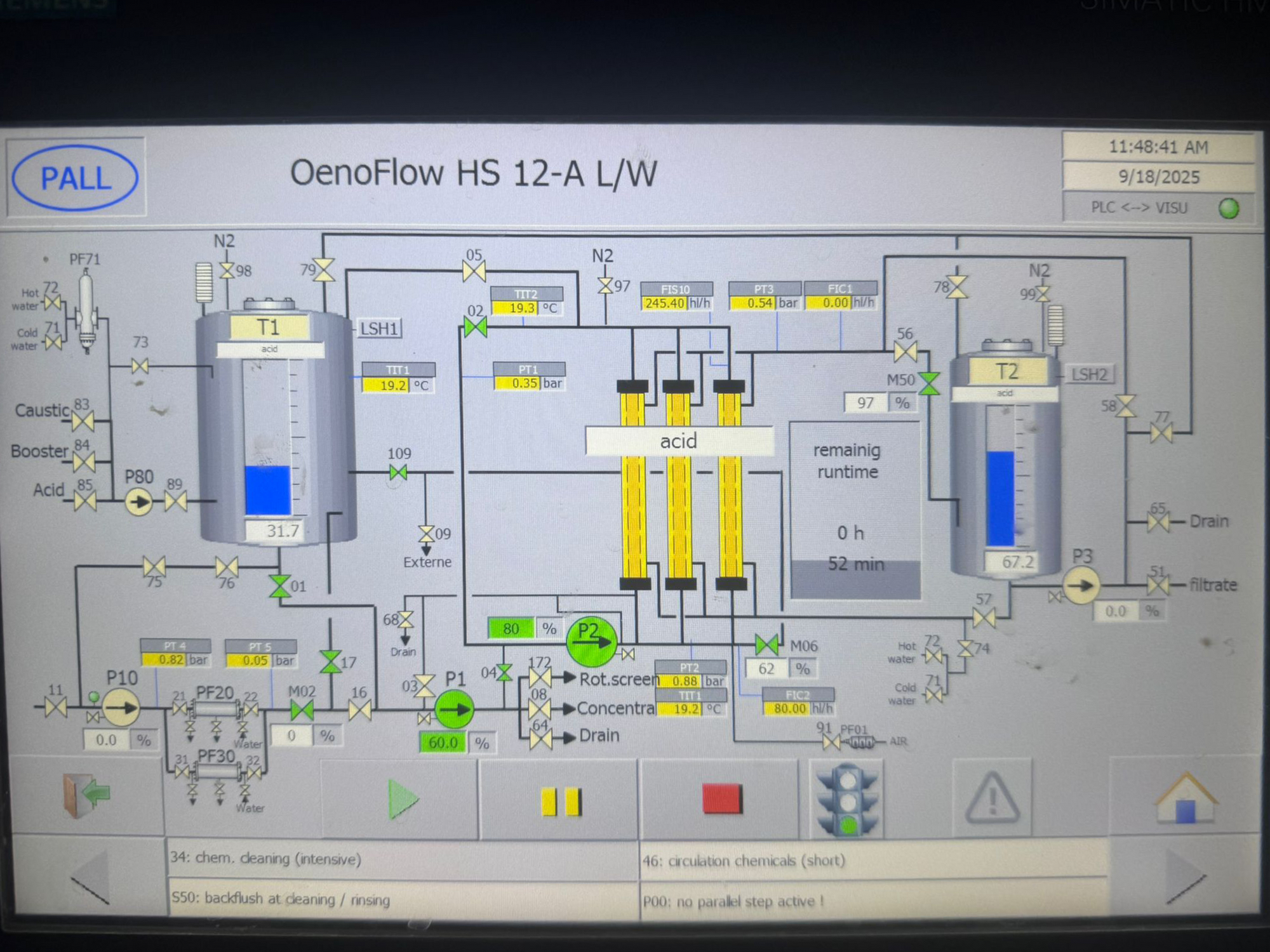

- Automation & software control – integrated interface allows selection of mode (pulp, wine, lees) and optimization of filtration parameters according to specific requirements.
